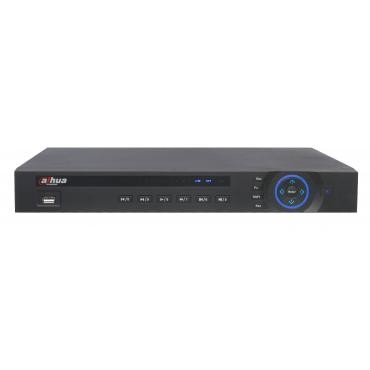

HDDVR0408 LF-AE

0 out of 5 based on 0 customer ratings

Original price was: Rp 3.750.000.Current price is: Rp 3.200.000.

> Up to 4/8/16/16 cameras with 1080p realtime preview

> H.264 dual-stream video compression

> DH-DVR0404LF-A: Full channel 2CIF or 2ch@D1+2ch@CIF

> DH-DVR0804LF-A: Full channel 2CIF or 2ch@D1+6ch@CIF

> DH-DVR1604LF-A/1604LF-AE: Full channel CIF or 1ch@D1+15ch@CIF

> HDMI / VGA / TV simultaneous video output > All channel synchronous realtime playback, GRID interface & smart search

> 3D intelligent positioning with Dahua PTZ dome camera

> Support 1 SATA HDD up to 4TB, 2 USB2.0

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Ukuran    375mm285mm50mm
Stok    100 buah
Berat    1500 gram

Hubungi kami via whatsapp.

Cabang Surabaya Online Need Help? Chat us via Whatsapp WA : 6281230200210 Chat

Cabang Malang Online Need Help? Chat us via Whatsapp WA : 6282330733057 Chat

Cabang Jember Online Need Help? Chat us via Whatsapp WA : 6281231838895 Chat

Product Meta

Description

201205331067981-2

Model		DH-DVR0404LF-A	DH-DVR0804LF-A	DH-DVR1604LF-A	DH-DVR1604LF-AE
System
Main Processor		Embedded processor
Operating System		Embedded LINUX
Video
Input		4channel, BNC	8channel, BNC	16channel, BNC	16channel, BNC
Standard		NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input		4channel, BNC	8channel, BNC	4channel, BNC	16channel, BNC
Output		1 channel, BNC
Two-way Talk		Same with audio input channel 1
Display
Interface		1 HDMI, 1 VGA, 1 TV, BNC
Resolution		1920×1080, 1280×1024, 1280×720, 1024×768
Display Split		1/4	1/4/8/9	1/4/8/9/16	1/4/8/9/16
Privacy Masking		4 rectangular zones (each camera)
OSD		Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/ Audio Compression		H.264 / G.711
Resolution		D1/4CIF(704×576/704×480)/2CIF(704×288/704×240)/CIF(352×288/352×240)/QCIF(176×144/176×120)
Record Rate	Main Stream	2CIF(25/30fps)/ 2ch@D1+2ch@CIF(25/30 fps)/ D1(12/15fps)	2CIF(25/30fps)/ 2ch@D1+6ch@CIF (25/30 fps)/ D1(12/15fps)	CIF(25/30fps)/ 1ch@D1+15ch@CIF(25/30 fps)/ D1(6/7fps)	CIF(25/30fps)/ 1ch@D1+15ch@CIF (25/30 fps)/ D1(6/7fps)
	Extra Stream	CIF (352×288/ 352×240); QCIF(176×144/176×120)
Bit Rate		48~4096Kb/s
Record Mode		Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval		1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events		Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Video Detection		Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input		4 channel	8 channel	16 channel	16 channel
Relay Output		1 channel	3 channel
Playback & Backup
Sync Playback		1/4	1/4/9	1/4/9/16	1/4/9/16
Search Mode		Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions		Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode		USB Device / Network
Network
Ethernet		RJ-45 port (10/100M/1000M)
Network Functions		HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Storage
Internal HDD		1 SATA ports, up to 4TB
Auxiliary Interface
USB Interface		2 ports (1 Rear), USB2.0
RS232		1 port, For PC communication & Keyboard
RS485		1 port, For PTZ control
General
Power Supply		DC 12V / 3.3A
Power Consumption		20W (Exclude HDD)
Working Environment		-10°C ~+55°C / 10~90%RH / 86~106kpa
Dimension (W×D×H)		1U, 375mm×285mm×50mm
Weight		1.5~2.5kg KG(Without HDD)
