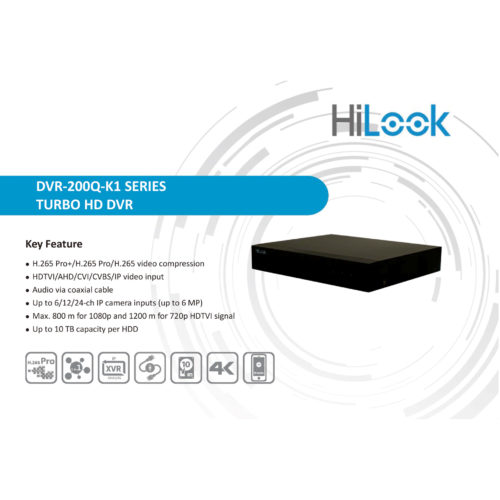

HILOOK DVR-208Q-K1 8CH

8-ch 1080p 1U H.265 DVR

• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Long distance transmission over UTP and coaxial cable
• H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
• Supports 4 MP lite, and when enabled the image effect is similar with 4 MP
• Encoding abilty up to 1080p lite @ 15 fps
• One HDD for continuous video recording
• Smart search for efficient playback.

• Hard Disk
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk

• External Interface
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• USB InterfaceReal panel: 2 × USB 2.0

• General
• Power Supply12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Consumption(Without HDD)≤ 12 W
• Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
• Weights (Without HDD)≤ 1 kg (2.2 lb)

• Video/Audio Input
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input4MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input4MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio CompressionG.711u
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• IP Video Input4-ch (up to 12-ch) Up to 6 MP resolution
• Turbo HD Input4MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1, the first 2 channels of DVR-208Q-K1, and the first 4 channels of DVR-216Q-K1.
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

• Video/Audio Output
• VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding ResolutionWhen 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
• Frame RateMain stream:When 1080p Lite mode not enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 3 MP stream access: 3 MP/1080p/720p….@15fpsFor 1080p stream access: 1080p/720p@15fps; VGA/WD1/…@25fps (P)/30fps (N)For 720p stream access: 720p/VGA…@25fps (P)/30fps (N)When 1080p Lite mode enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fpsFor 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video Bit Rate32 Kbps to 6 Mbps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Bit Rate64 Kbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Synchronous Playback8-ch

• Network Management
• Remote Connections64
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
