Description

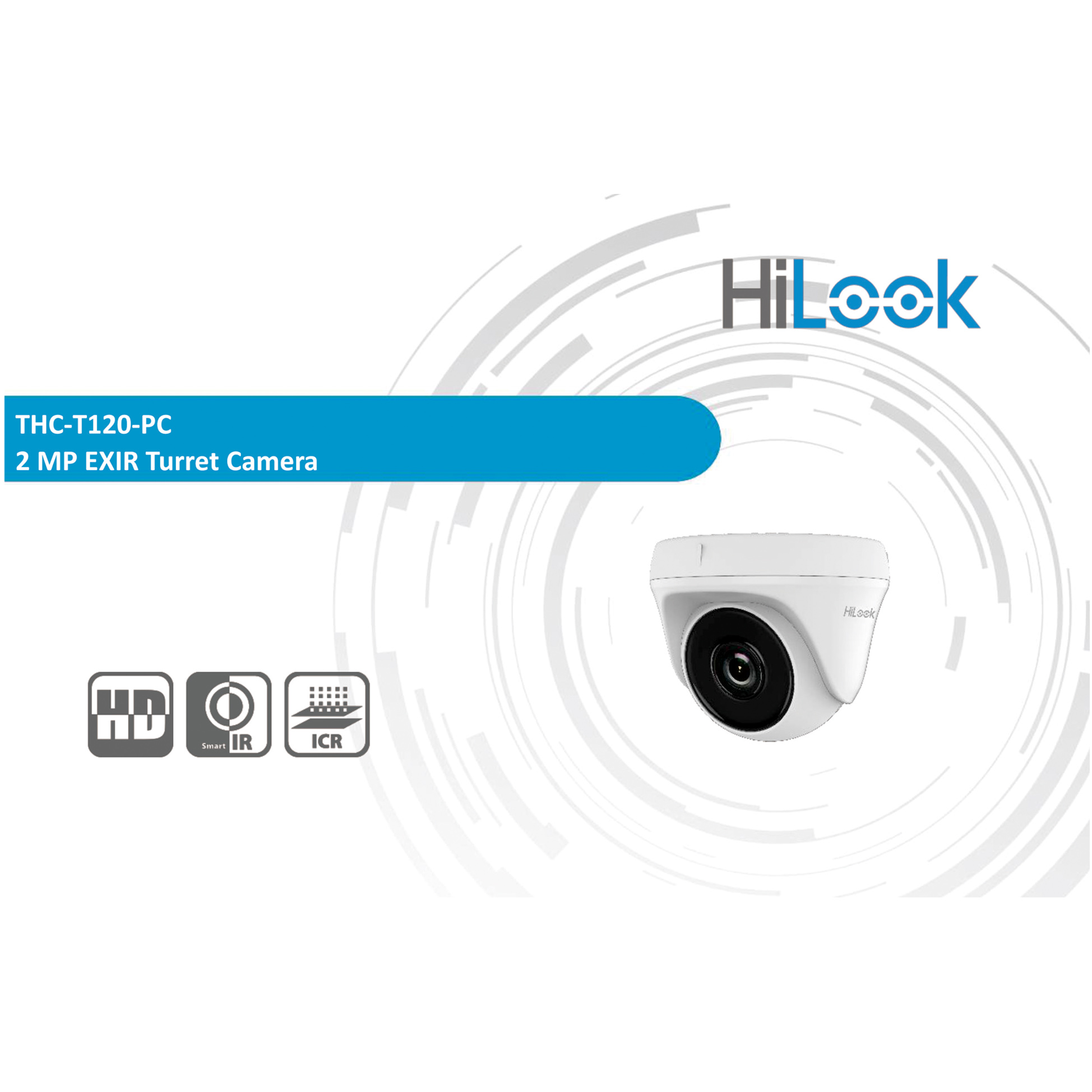

- 1080p turret camera
- Smart IR, up to 20 m IR distanceWater resistant (IP66)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
- Interface
- Video Output1 HD analog output
- Switch ButtonTVI/AHD/CVI/CVBS
- Menu
- Day/Night ModeIR cut filter
- DWDR (Digital Wide Dynamic Range)Support
- LanguageEnglish
- FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
- Backlight CompensationSupport
- Camera
- Image Sensor2 MP CMOS image sensor
- Signal SystemPAL/NTSC
- Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
- Resolution1920 (H) × 1080 (V)
- Shutter Time1/25 (1/30) s to 1/50,000 s
- Min. Illumination0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
- Lens2.8 mm, 3.6 mm
- Horizontal Field Of View103°(2.8 mm), 80.7°(3.6 mm), 50.1°(6 mm)
- Lens MountM12
- Day & NightIR cut filter
- SynchronizationInternal synchronization
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- General
- Power Supply12 VDC ± 15%
- Power ConsumptionMax. 4 W
- MaterialPlastic
- IR RangeUp to 20 m
- DimensionsØ 85.4 mm × 76.12 mm ( Ø 3.38″ × 2.67″)
- Weight130 g (0.29 lb.)
- Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
