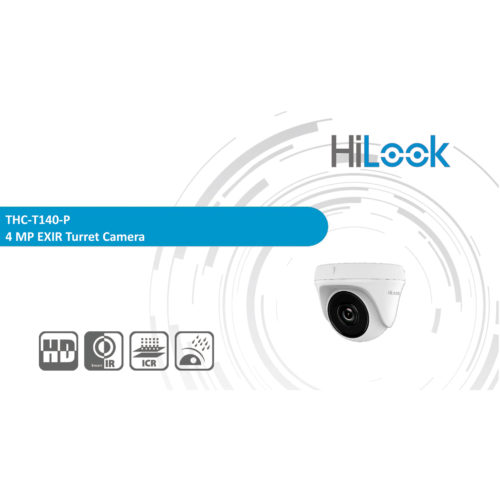

HILOOK THC-T140-P 4MP

4 MP high-performance CMOS
2560 × 1440 resolution
2.8 mm, 3.6 mm, 6 mm fixed lens
Day/Night switch
EXIR 2.0, smart IR, up to 20 m IR distance
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP66

Camera
Image Sensor 4 MP CMOS image sensor
Signal System PAL/NTSC
Resolution 2560 (H) ×1440 (V)
Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm
Horizontal Field of View 100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0°to 360°
Synchronization Internal synchronization
Video Frame Rate PAL: 1080p@25fps, 4 MP@25fps
NTSC: 1080p@30fps, 4 MP@30fps
Menu
AGC High/Medium/Low/Off
D/N Mode Auto/Color/BW (Black and White)
BLC Support
DWDR Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±15%
Power Consumption Max. 4 W
Protection Level IP66
Material Plastic
IR Range Up to 20 m
Dimensions Ø 85.4 mm × 76.12 mm (Ø 3.38″ × 2.67″)
Weight 120 g (0.26 lb.)
